THS-203

THS-203

Regular price $659.20
Regular price Sale price $659.20
Sale Sold out
Shipping calculated at checkout.
Film Type: 727 Vinyl
Print Area (Width): 1"
Print Area (Height): 1"
Print Area Color: White
Core Size: 3"
Roll Size: 8" (Max)
Wind Option: Face Out - Tail First
Write On Height: 1"
Vertical Repeat: 4"
Web Width: 3.4"
Ft Per 1000 Labels: 111.11
Ribbon Length Per 1000: 111.11'
Labels Per Roll: 5000
View full details
The 203 label is one of our most popular wire harness cable labels.

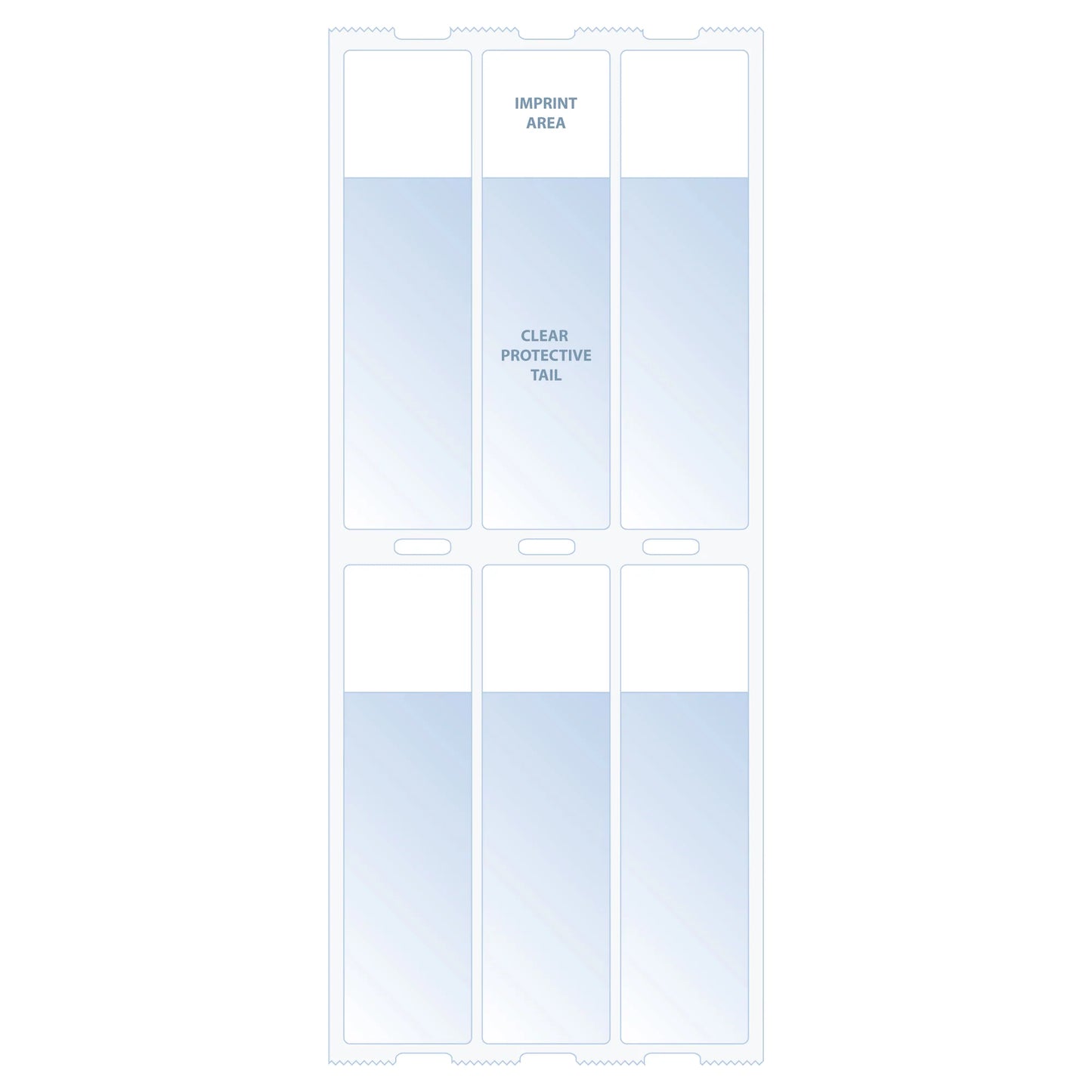

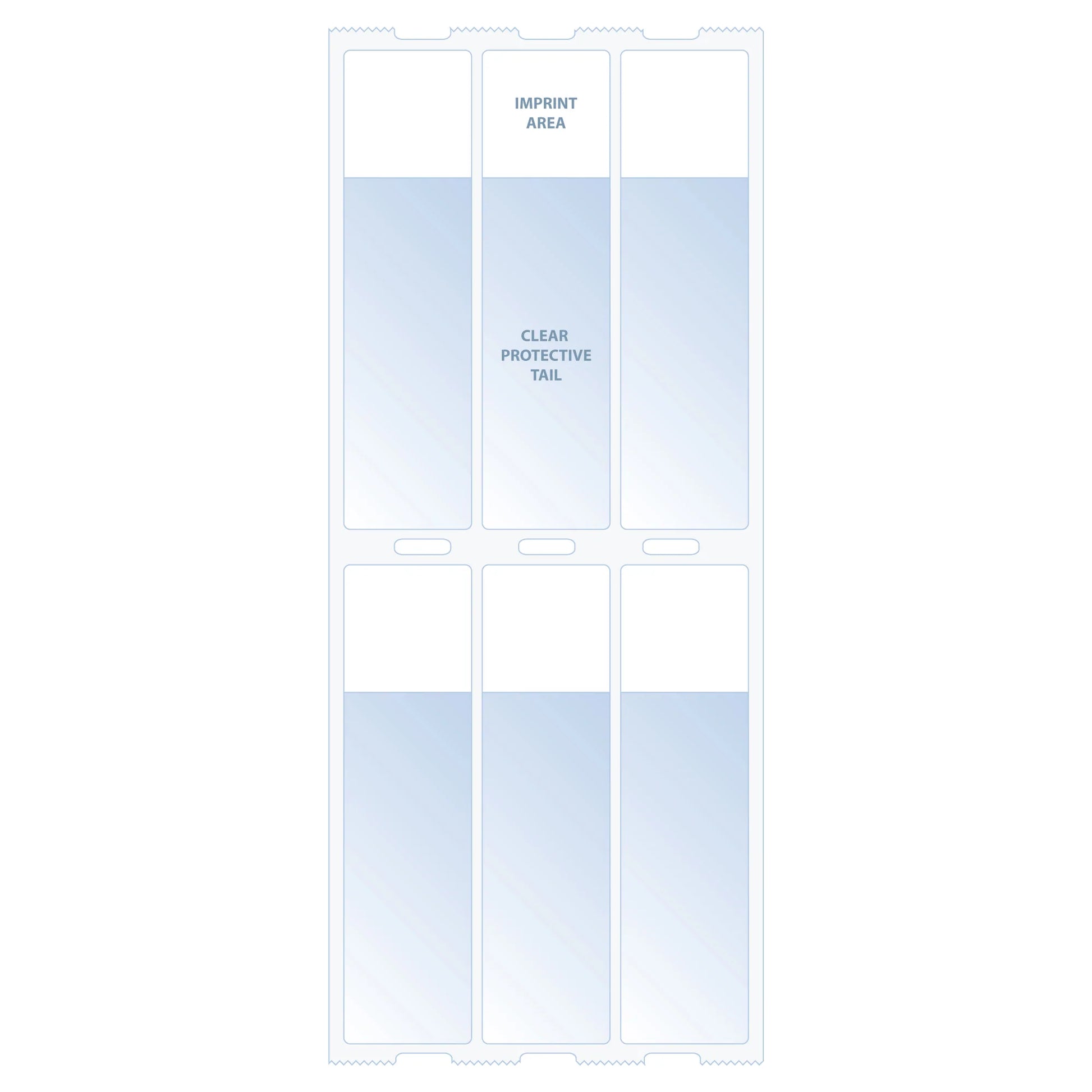

Each vinyl label has a white thermal transfer printable area for your imprint and a clear tail portion that wraps around the wire/cable to protect the imprint from smudging or smearing.

Provides a clean and professional appearance and makes identifying wires during trouble shooting/maintenance easier.

Product Specifications

Download

Download Templates

BarTender

What is Film Type?

727 Vinyl

A clear matte flexible vinyl film with a permanent acrylic pressure sensitive.

What is Core Size?

  • 1" inner core diameter comes with an 5" outer roll diameter for desktop printers; Example: (ZT1300, TLP3844, TLP2844, E4203, E4204, Ci, Cxi)
  • 3" inner core diameter comes with an 8" outer roll diameter for high capacity printers; Example: (ZT1300, 105SE, 105SL, Z4M, Z6M, I4208, CL408, CL412)

What is Wind Option?
